Mechanical Drawing AI Checker
Utilize AI to get feasibility checks on mechanical drawings before manufacturing.
CATEGORY
Mechanical Drawings
PARTNER
Visendi (in-house)
Eliminating Manual Drawing Checks
Manually checking if mechanical drawings fulfill requirements consumes valuable engineering time at most hardware producers. This repetitive process slows down development cycles and takes skilled engineers away from more innovative work.
Utilizing the Visual Capabilities of Generative AI Models

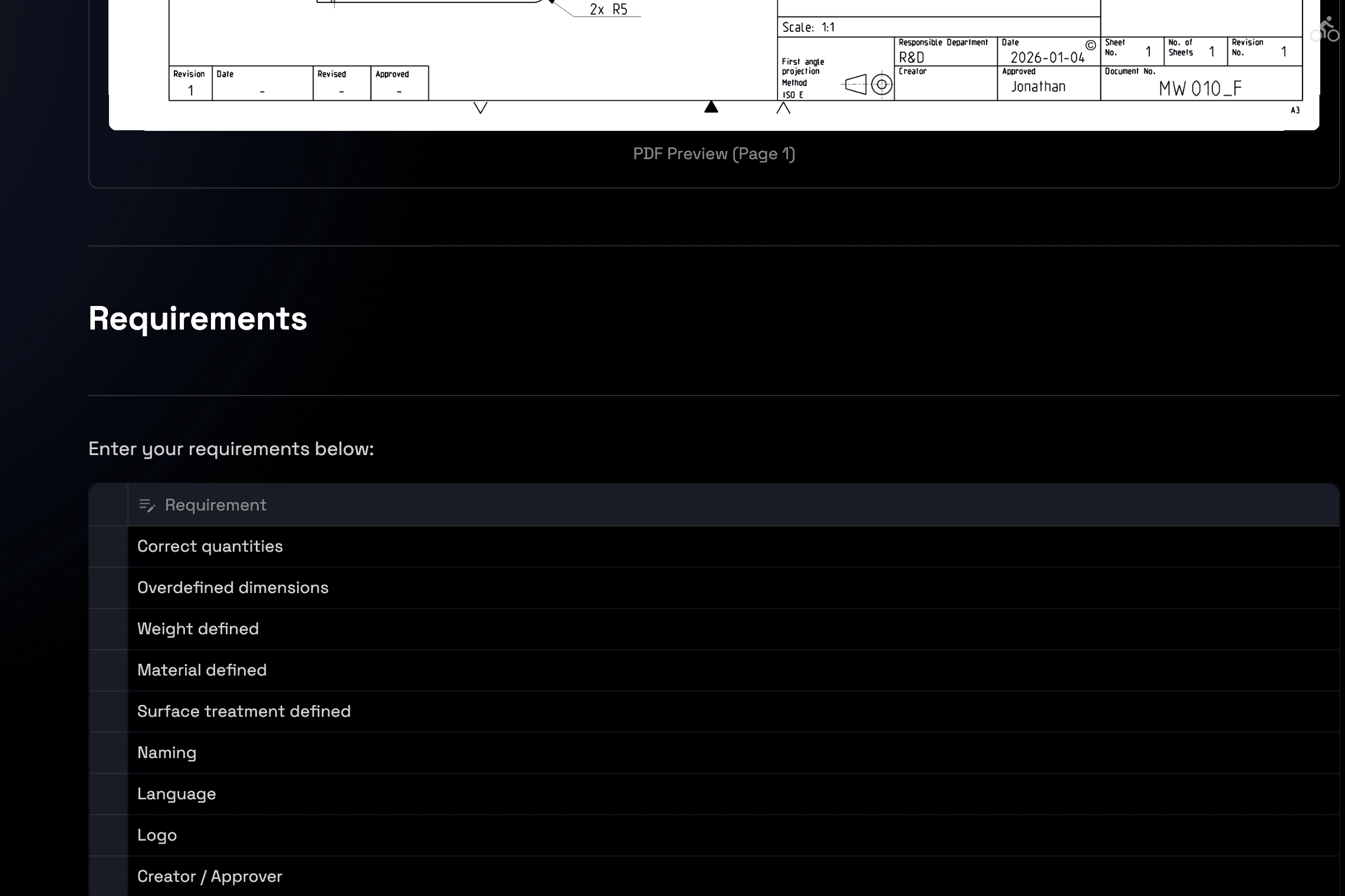

Translating visual input and lists of requirements to automatically check which drawings contain deviations. This approach eliminates human error and dramatically reduces the time needed for compliance verification.
2D Drawings Still Stick Around and Need to Be Maintained
Lots of unique requirements cause difficulties for CAD software providers to build one-size-fits-all drawing checks, often resulting in unnecessary engineering time being spent instead. This creates a persistent bottleneck that prevents teams from scaling their design validation processes effectively.
Many Suppliers Still Require 2D Drawings
The world is moving towards 3D drawings, but 2D drawings are still a reality most companies need to adapt to. This transition period creates dual workflows where teams must maintain both formats, increasing complexity and potential for errors.
Automating Drawing Checks with AI

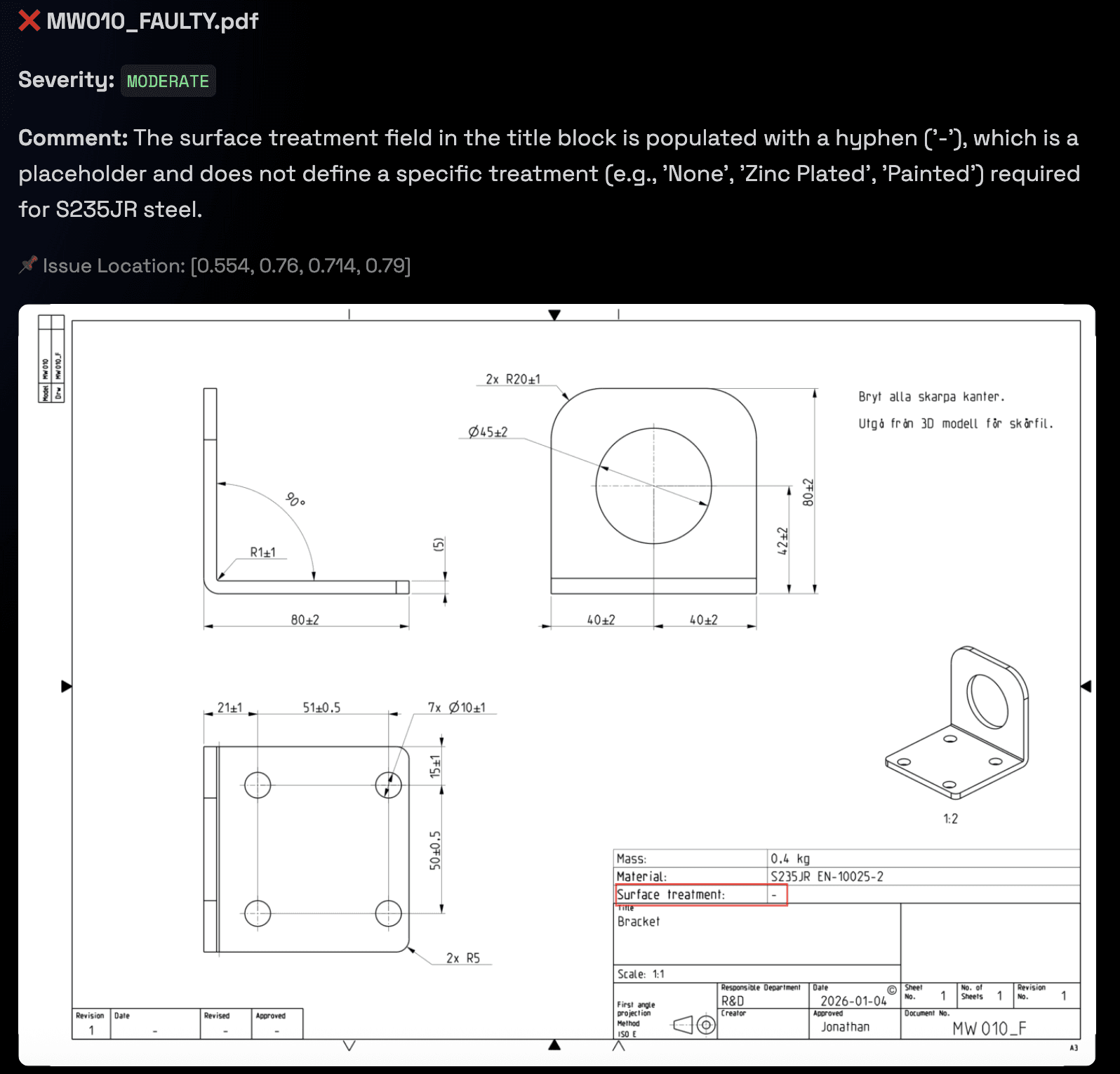

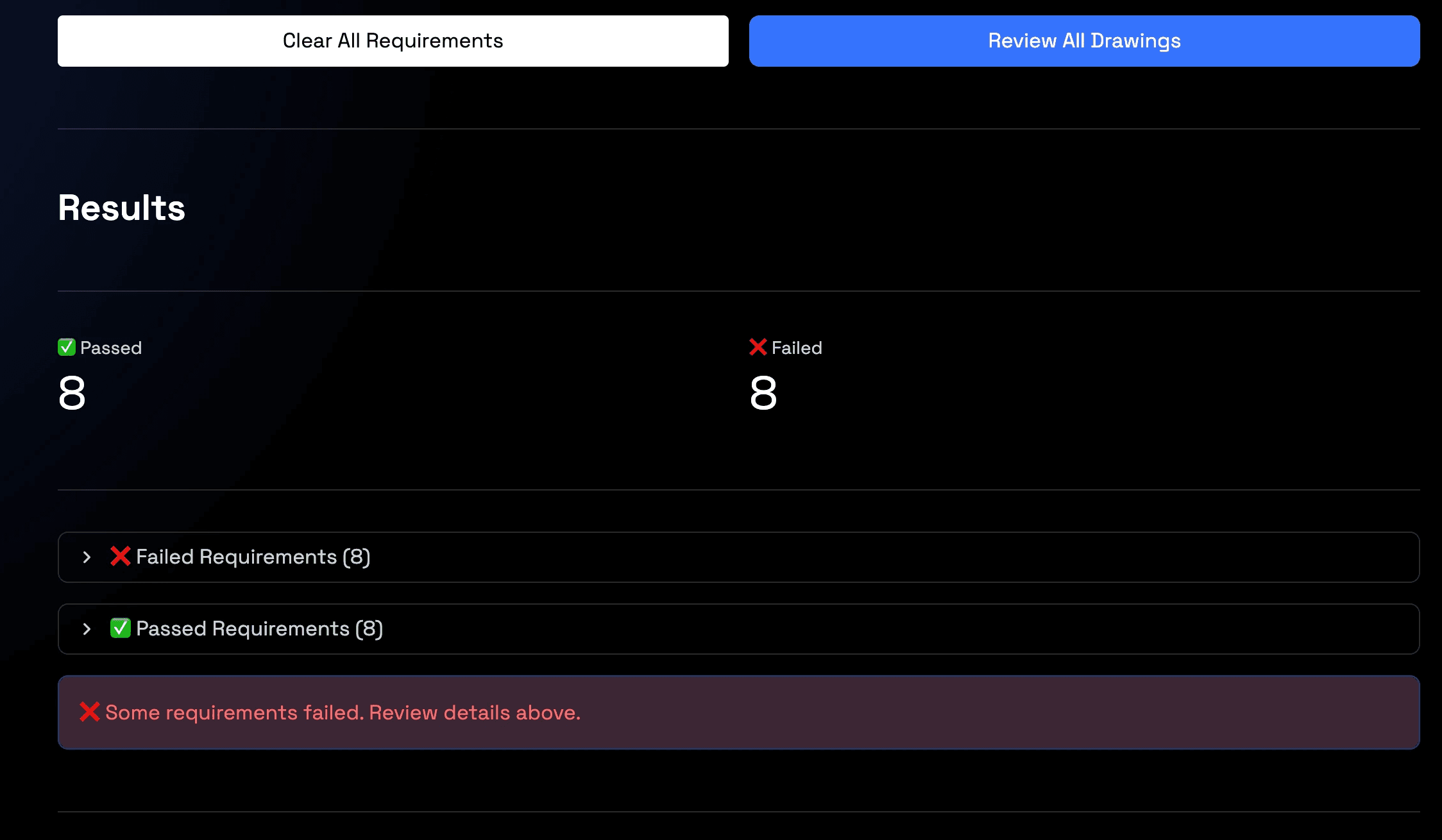

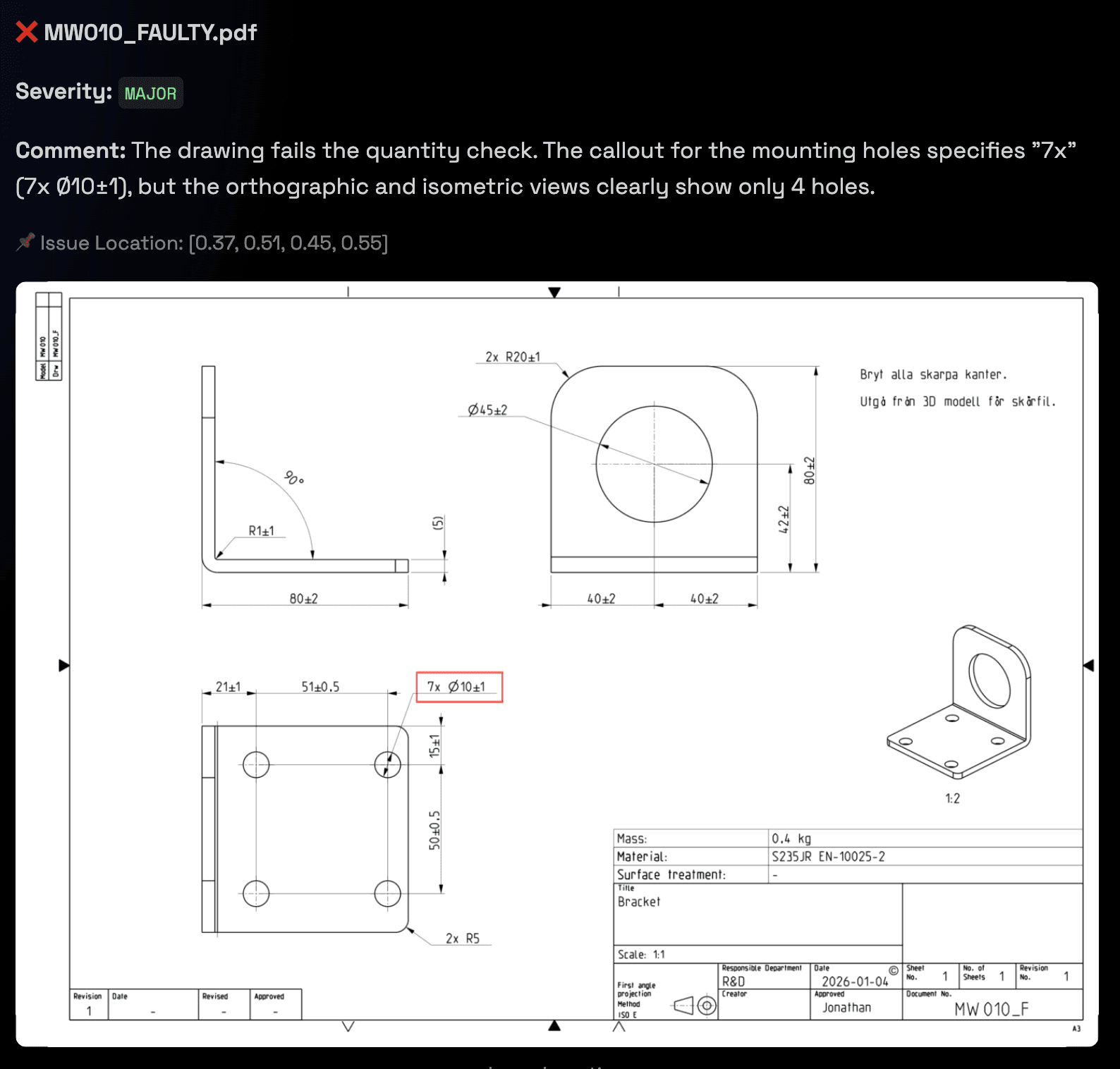

Myndfrodr is an experiment where we evaluated the potential for AI to be used for automated technical drawing validation and compliance checking. This proof-of-concept demonstrated how visual AI can identify deviations and verify requirements faster than traditional manual processes.
Open for Anyone to Try Out
Myndfrodr will eventually integrate closely with our CAD AI, Ragnar, but while still in experimental stages, we've made it available for testing so you can try it out and share feedback on what capabilities would make it most useful.
